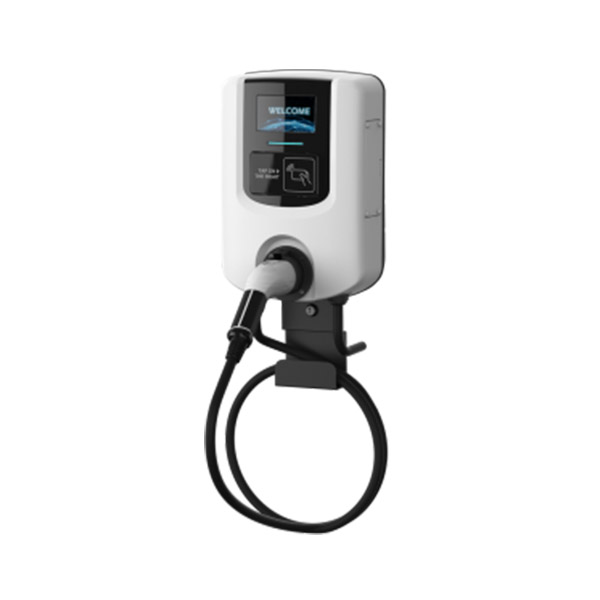

32A 壁掛式交流充電樁
AH 系列 - 最適合住宅，社區和商業區交流充電器
特性：
最適合住宅，社區和商業區交流充電器
輸入: 200~240Vac
時尚，符合人體工程學和可定制的設計
符合戶外的IP55 設計
可遠端更新程式
可經由有線/ 無線的方式連到後台
可選用RFID 讀卡器，用於用戶識別和管理
充電界面 :SAE J1772(Type 1) / IEC 62196-2(Type2)
特性：
最適合住宅，社區和商業區交流充電器
輸入: 200~240Vac
時尚，符合人體工程學和可定制的設計
符合戶外的IP55 設計
可遠端更新程式
可經由有線/ 無線的方式連到後台
可選用RFID 讀卡器，用於用戶識別和管理
充電界面 :SAE J1772(Type 1) / IEC 62196-2(Type2)
說明
| AH series | ||||
|---|---|---|---|---|
| Model No. | EA702C0E / EA702C1E | EA7021U | EA702C0 / EA702C1 | |
| AC Input | Input Rating | 230Vac / Single Phase |
208-240Vac / 1-phase (AC Level 2) |
200~240Vac |
| AC Input Connection | L/N/PE | L1/L2/GND | L/L1,N/L2,PE | |
| Max. Input Current (A) | 32 | |||
| Frequency (Hz) | 50 / 60 | |||
| AC Output | Max Output Current | 32A | ||
| User Interface & Control | Display | 5 inch LCD | ||
| Display Information | RFID(ISO / IEC 14443A/B, ISO / IEC 15693, FeliCa™1, NFC, Mifare) | |||
| Communication | External | LAN(standard) / 4G(optional) or Wi-Fi(optional) Internal | ||
| Internal | OCPP 1.6 JSON | |||
| Environmental | Operating Temperature (°C) | -30 ~ 50 | ||
| Humidity (%) | Max. 90% RH | |||
| Altitude (m) | ≦ 2000m | |||
| IP Level | IP55 | NEMA TYPE 3R | IP55 | |
| Cooling method | Natural Cooling | |||
| Mechanical | Dimension (WxDxH mm) | 290 x 120 x 410 | ||
| Weight (kg) | ≦ 7 (With Gun) | |||
| Cable Length(m) | 5 | |||
| Protection | Input Protection | UVP, OVP, Ground fault | ||
| Output Protection | OCP & RCD | |||
| Internal | OTP, Relay welding detection, MCU function fault detection | |||
| Regulation | Certificate |
IEC 61851-1：2017 IEC61851-21-2:2018 |
UL2594, UL2231-1/-2 |
CNS 15511-1:2017 CNS 15511-2:2010 CNS 15511-3:2012 CNS 15511-22:2017 |
| Safety | CE | UL / cUL | CNS | |
| Charging Interface |
IEC 62196-2：2016 Type 2 Plug, Type 2 Socket |
SAEJ1772 Type 1 Plug | SAEJ1772 Type 1 Plug | |
Applications
- Highway gas / service station
- Parking garage
- EV dealer workshops
- Commercial fleet operators
- EV infrastructure operators / service providers
