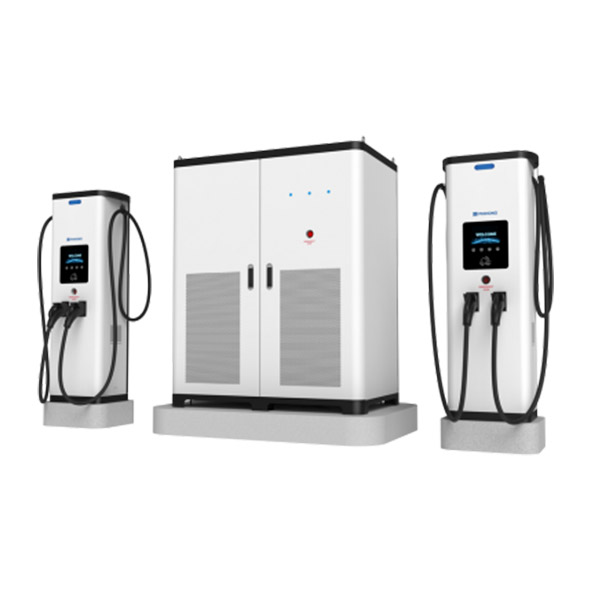

360kw風冷系統- 整合式充電樁
DO 系列 - 簡易安裝及維護
特性：
風冷散熱
簡易安裝及維護
客制化印刷設計
可結合四槍子槍櫃組成充電樁
特性：
風冷散熱
簡易安裝及維護
客制化印刷設計
可結合四槍子槍櫃組成充電樁
說明
| DO series | ||
| Model No. | DO360 (NA) | |
| AC Input | Input Rating | 480 Vac +10%/-15% |
| AC Input Connection | 3P + N + PE(Wye configuration) | |
| Max. Input Current (A) | 396kVA | |
| Frequency (Hz) | 50Hz / 60Hz | |
| Power Factor | >0.99 (APFC) | |
| Efficiency (%) | > 94% at nominal output power | |
| DC Output | Output Voltage Range | 50~500Vdc (CHAdeMO) / 150~950Vdc (CCS) |
| Max. Output Current | Single Gun : 500A@720V, 379A@950V | |
| Max. Output Power (kW) | 360kW | |
| Voltage Accuracy (%) | ± 1 | |
| Current Accuracy (%) | ± 1 | |
| User Interface & Control | Display | 7'' TFT-LCD |
| Push Buttons | Emergency Stop | |
| User Authentication | RFID ISO14443A (M1/MIFARE Card) | |
| Display Information | Charging process and status / Alarm and warning messages | |
| Communication | External | Ethernet , WiFi and 3G/4G (Optional) |
| Internal | CANbus / RS485 | |
| Environmental | Operating Temperature (°C) | -30˚C ~ 50˚C, power derating from 50 and above |
| Humidity (%) | 5% ~ 90% RH, non-condensing | |
| Altitude (m) | ≦ 2000m | |
| IP Level | IP55 / IK10(not include screen and RFID module) | |
| Cooling method | Fan cooling | |
| Mechanical | Dimension (WxDxH mm) |
1160 x 780 x 1800 (The main cabinet) 550 x 450 x 1800 (The sub cabinet) |
| Weight (kg) | < 1000 | |
| Cable Length(m) | 4m | |
| Protection | Input Protection | OVP, OCP, OPP, OTP, UVP, Residual current detection, Surge protection,Cabinet-open detection |
| Output Protection | SCP, OCP, OVP, LVP, OTP, Residual current detection | |
| Regulation | Certificate | UL 2202, UL2231 |
| Safety | UL/cUL | |
| Charging Interface | CHAdeMO V1.2, ISO15118, DIN 70121, GB/T 20234.3-2015 | |
Applications
- Highway gas / service station
- Parking garage
- EV dealer workshops
- Commercial fleet operators
- EV infrastructure operators / service providers
